Users Instructions (cont.)

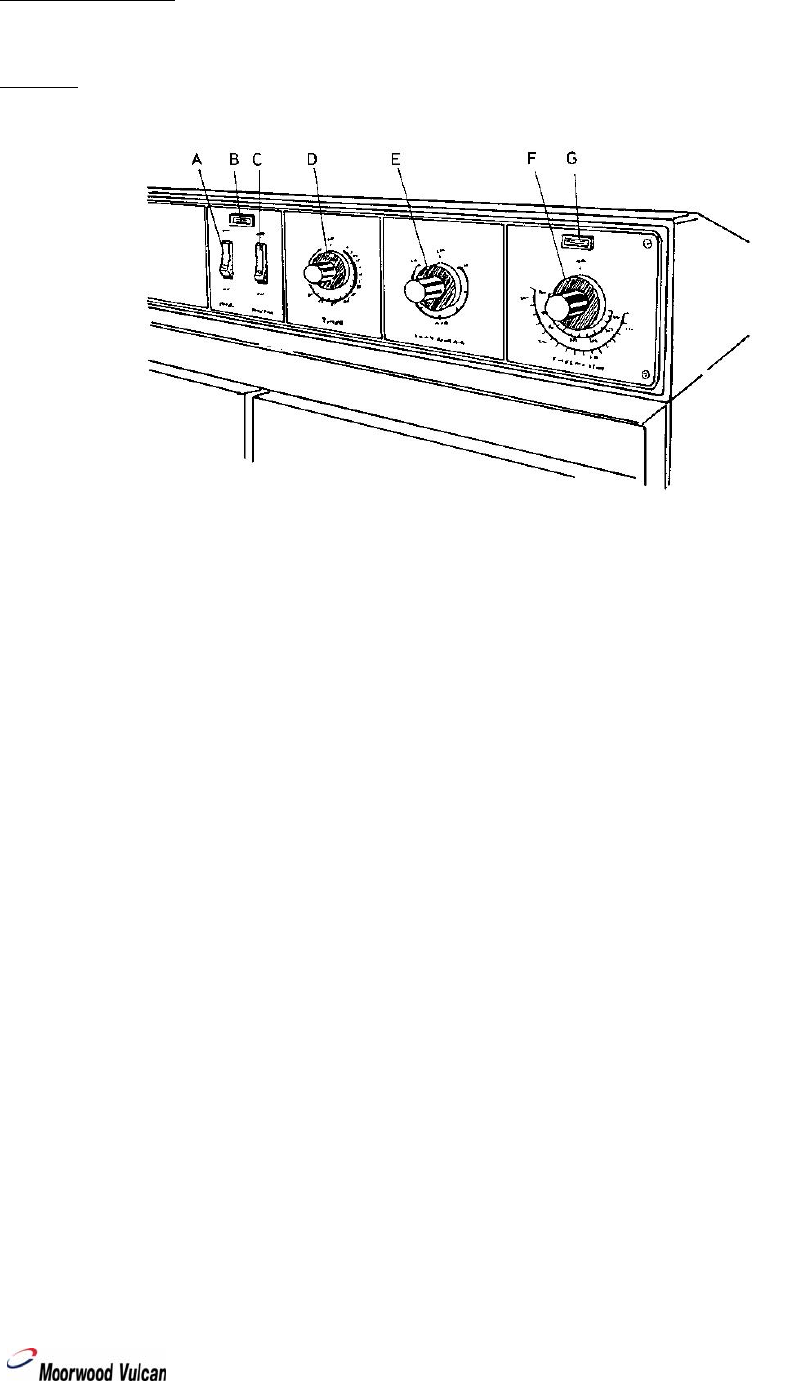

Controls

Power/Ignition Main ON/OFF switch, connects controls to electrical supply and initiates

Switch (A) ignition sequence.

Ignition Indicator Glows whenever ignition system is in operation.

Light (B)

Auxiliary Fan Controls operation of fan when doors are open to permit rapid cooling of

Switch (C) oven.

Timer (D) Selects time intervals up to 60 minutes. A bell rings at the end of selected period.

Note: Timer has no control over burners.

Load Control (E) Controls variation of gas-input between 0 and 100% of full input. See also “Load

Control Settings,” page 16.

Thermostat (F) Controls temperature inside oven through a range of 93°C to 260°C (200°F to

500°F) by controlling both burners

Thermostat Indicator Glows whenever thermostat is in operation.

Light (G)

Door Microswitch Cuts off fan and main burners automatically when doors are opened. May be

overridden by means of auxiliary fan switch, see above.

Manual Part No: 930087-01 SNORKEL Gas Convection Oven - 15 –

Manual Rev No: 1
